Adams Rite 2190-311-101-32D

Your Price: $390.96

Retail Price:$739.00

Your Savings:$348.04(47%)

Dual Force Interconnected Lock, 1-1/8" Backset, Flat Strike, Aluminum Faceplate, 01 Curve Lever Trim, Satin Stainless Steel

Part Number: ADR_219031110132D

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Description
Literature

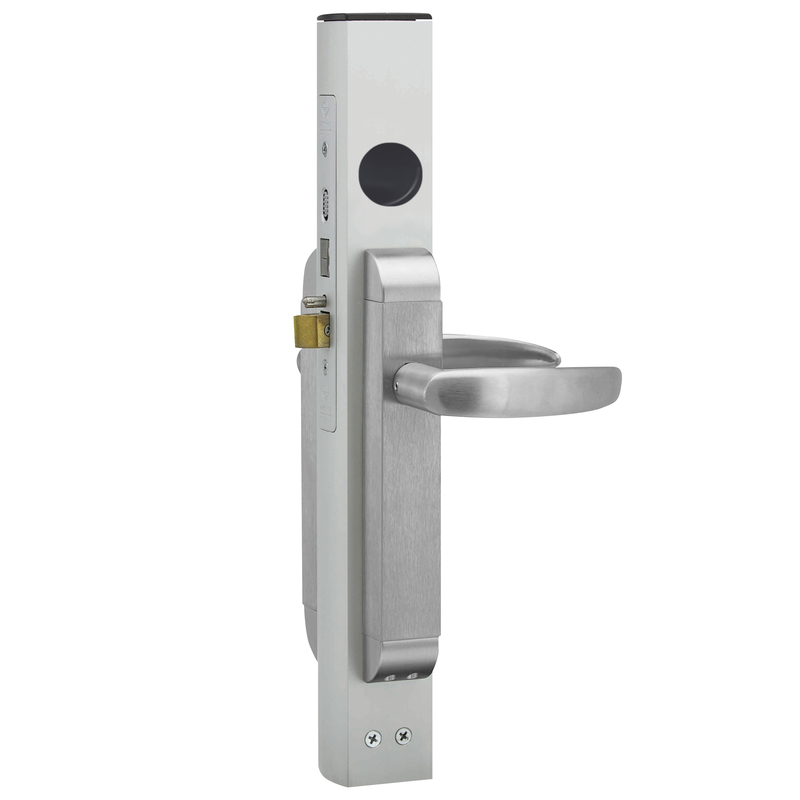

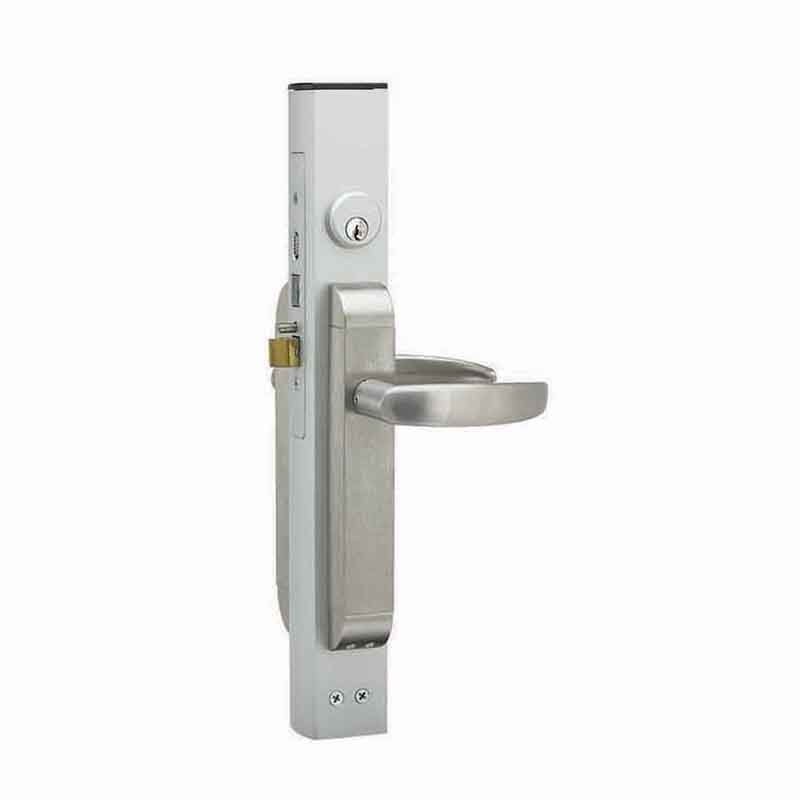

Adams Rite 2190-311-101-32D Aluminum Door Deadlocks

Adams Rite 219031110132D Dual Force Interconnected Deadbolt/Deadlatch, 1-1/8" BS, Standard Flat Strike with Curve Lever Trim Satin Stainless Steel Finish

INTER-CONNECTION
Field-selectable inter-connection feature allows interior trim to retract deadbolt and deadlatch. Consult local building officials for guidance in code compliance. Retrofits to existing MS1850S Deadbolt or 4500 and 4900 Deadlatch of the same backset. 1-3/4" minimum door thickness required.
CYLINDER BASKET
1-1/8" or 1-1/2" only.
LATCHBOLT/DEADBOLT
Latchbolt: 5/8" throw of solid brass. Easily reversible using only a screwdriver.
Deadbolt: 1" throw of stainless steel.
AUXILIARY DEADLATCH PIN
Stainless steel. Deadlocks latchbolt to prevent "loiding" or case-knife entry.
FACEPLATES
Measures 1" x 6-7/8". Include FaceStyle faceplate system that adapts to flat, radius, or beveled door edge. Radius with weatherseal faceplate available separately.
STRIKES
Standard strike furnished is the 2101-01 for flat jamb where door closes flush or nearly flush. The 2101 covers MS® Deadlock strike preparation with modification, and the 4901 Deadlatch strike directly. Also available in radius version for opposite stile pairs of doors and with extended lip strikes for special jamb conditions.
CYLINDER CAM
The Dual Force 2190 is operable by any standard 1-5/32" diameter mortise cylinder with MS® cam. Cylinders with MS® cams can be readily obtained from most cylinder manufacturers.
OPTIONS
Specify trim option, lever style, finish, and strike. Also adapts to paddle operator 4591. See 2290 for wood or steel door version for stile and rail type door construction. Note that the low profile trim (trim option 3) is recommended for in-swing door applications. Please refer to 3080 (TRIM) for full offering of designer handle sets.
ELECTRIFIED TRIM OPTIONS
Order 2190 Electrification Kit EK-2190 for adding to the clutched exterior lever. Dual voltage 12/24 VDC rated for continuous duty operation. Energizing the lever allows exterior lever to be turned to retract latch only. The electrified option is not available for low profile trim (trim option 3).
STANDARD PACKAGE
Individually boxedwithtrim as specified, strike and machine screws for mounting. Cylinders available separately. Shipping weight: 2 lbs.
Interconnected Deadbolt / Deadlatch
Provides Access Control and Security for Aluminum Stile Doors
Latch and Deadbolt Capabilities are Combined for Fast, Easy, Panic-Proof Exiting
1-1/8" Backset
Warranted Free From Defects In Workmanship And Materials Under Normal Use And Service

Attributes

Ship via: Can Ship UPS

Alternate Codes: 2190-311-101-32D, 219031110132D

Backset: 1-1/8"

Category: Glass Aluminum Hardware, Locking Hardware, Lock Sets

Door Application: Glass Aluminum Hardware

Door Bore Size: 2-1/8"

Door Thickness Min: 1-3/4"

Finish: Satin Stainless Steel

Finish Code: 628, 630, US32D

Finish Color: Satin Stainless Steel

Finish Description: Satin Stainless Steel

Function: Interconnected Deadbolt/Deadlatch For Storefront Doors

Grade: Grade 1

Handing: Field Reversible

Knob/ Lever Design: Curve

Knob/ Lever Style: Lever

Latch Bolt Face Type: Connectivity

Latch Bolt Faceplate Size: 6-7/8" x 1"

Latch Bolt Throw: 1", 5/8"

Latch Bolt Type: Deadbolt, Deadlatch

Lever Knob Design: 01 - Curve

Lever Style: Curved Back to Door

Lock Category: Mortise Lock

Series: 2100 Series

Strike: 2101-01 Strike

Strike Type: Flat Strike

Subtype: Storm Door Hardware

Supplier: Adams Rite

Trim Option: With Trim

Type: Door Accessories
