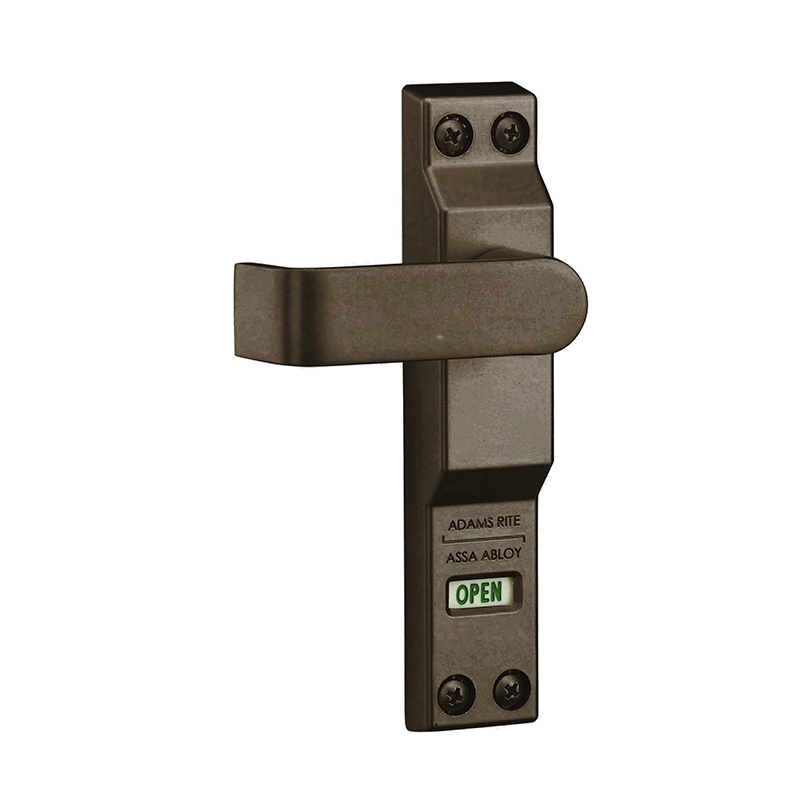

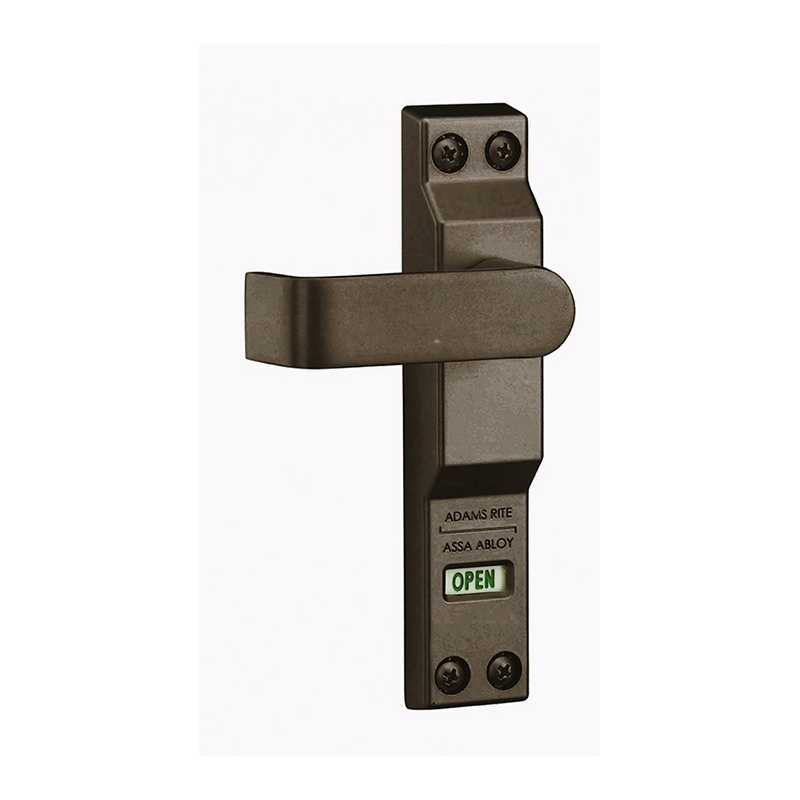

Adams Rite 4550L-01-121

Your Price: $128.52

Retail Price:$243.00

Your Savings:$114.48(47%)

Lever Trim for MS Deadlock, Flat Lever with Return, LOCKED/OPEN Indicator, LH or LHR, Dark Bronze Paint

Part Number: ADR_4550L01121

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Description
Literature

Adams Rite 4550L-01-121 Aluminum Door Trim

Adams Rite 4550L01121 MS Deadlock Lever Left Hand 1-3/4"-2" Dark Bronze Finish

HOUSING
Aluminum casting is 1-3/8" wide x 7-1/2" long x 1" deep.
LEVER
3" long aluminum with end-return design offers comfortable grip to lock or unlock.
INDICATOR

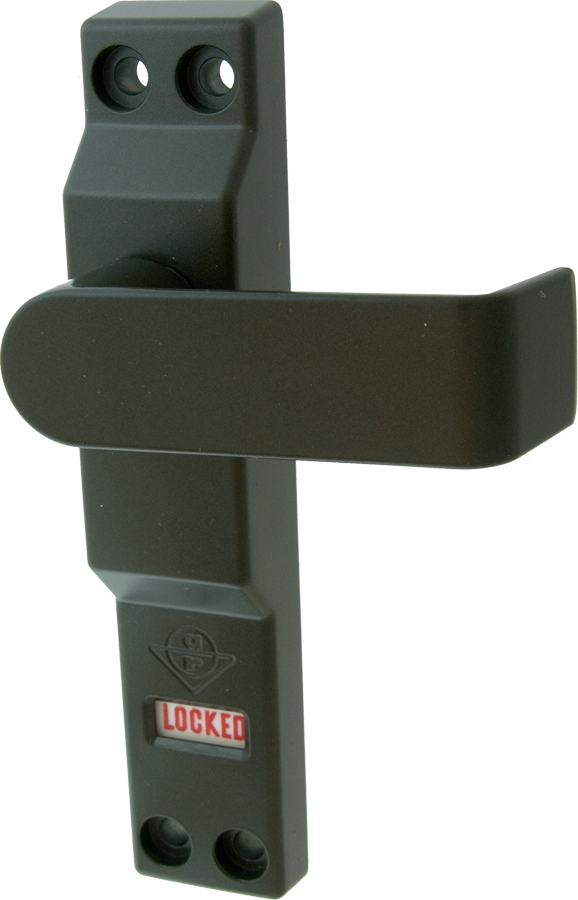

Words "LOCKED" in red letters or "OPEN" in black letters appear on white background when lock is thrown or retracted. Indicator is driven by lock bolt itself.
STOP CLEARANCE
Lever housing projects 11/16" forward of cylinder backset centerline. Depending on height of door stop and width of door/jamb gap, it may be necessary to modify the stop to clear the housing.
COMPATIBLE LOCK
Any MS® pivoted bolt deadlock including "Schoolhouse" versions can be fitted with the 4550 including MS1850S, MS1950, MS1837, etc.
Derivative units such as 1870, 1870HM, or 1877 flushbolts (bolt into threshold) are also operable by the 4550 lever.
Not compatible with MS+1890 or 2190 Deadlock/Latch or with 7/8" backset locks.
OPTIONS:
Available in three finishes to match anodized aluminum finishes. Can be ordered for left or right hand door, but is easily reconfigured in the field to accommodate either door swing.
STANDARD PACKAGE:
Individually boxed with installation instructions, mounting screws, and drive pins for both single point and threshold bolt-equipped locks. Shipping weight: 1 lb.
MS Deadlock Lever
Easily Unlocks and MS Deadlock with Three Pounds of Downward Force
Spring-Loaded Lever Locks and Reloads with Upward Motion
Indicator Signals Lock Status
Warranted Free From Defects In Workmanship And Materials Under Normal Use And Service

Features

Derivative units such as 1870, 1870HM, or 1877 flush bolts (bolt into threshold) are also operable by the 4550 lever.
Options: Available in three finishes to match anodized aluminum finishes. Can be ordered for left or right hand door, but is easily reconfigured in the field to accommodate either door swing.
Lever: 3" long aluminum with end-return design offers comfortable grip to lock or unlock.
Any MS® pivoted bolt deadlock including "Schoolhouse" versions can be fitted with the 4550 including MS1850S, MS1950, MS1837, etc.
Not compatible with MS+1890 or 2190 Deadlock/Latch or with 7/8" backset locks.
Standard Package: Individually boxed with installation instructions, mounting screws, and drive pins for both single point and threshold bolt-equipped locks. Shipping weight: 1 lb.
Compatible Lock:
Housing: Aluminum casting is 1-3/8" wide x 7-1/2" long x 1" deep.
Stop Clearance: Lever housing projects 11/16" forward of cylinder backset centerline. Depending on height of door stop and width of door/jamb gap, it may be necessary to modify the stop to clear the housing.
Indicator: Words "LOCKED" in red letters or "OPEN" in black letters appear on white background when lock is thrown or retracted. Indicator is driven by lock bolt itself.

Attributes

Ship via: Can Ship UPS

Alternate Codes: 122956, 4550L-01-121, 4550L01121

Baa Qualified: Yes

Category: Glass Aluminum Hardware, Levers, Handles & Pulls, Locking Hardware, Lock Sets

Compatibility: 4700, 4900, AdamsRite 4500

Country of Origin: Usa

Design: End-Return Handle

Door Application: Glass Aluminum Hardware

Door Thickness: 1-3/4" - 2"

Door Thickness Max: 2"

Door Thickness Min: 1-3/4"

Finish: Dark Bronze

Finish Code: 313

Finish Color: Dark Bronze

Finish Description: Dark Bronze Ritecoat Paint

For Use With: MS1850S, MS1950, MS1837, etc.

Function: Deadlock

Hand: LH

Handing: Left Handed

Knob/ Lever Design: Bent

Knob/ Lever Style: Lever

Lever Knob Design: Flat Lever w/Return

Lever Style: Lever With Indicator

Limited Warranty: 5 Years

Rose Escutcheon Design: Rectangle with Indicator

Screws: Machine

Series: 4550

Subtype: Levers

Supplier: Adams Rite

Type: Door Hardware Parts
