Images may not represent actual product and finish

Adams Rite 4591-01-00-313

Your Price: $82.62

Retail Price:$157.00

Your Savings:$74.38(47%)

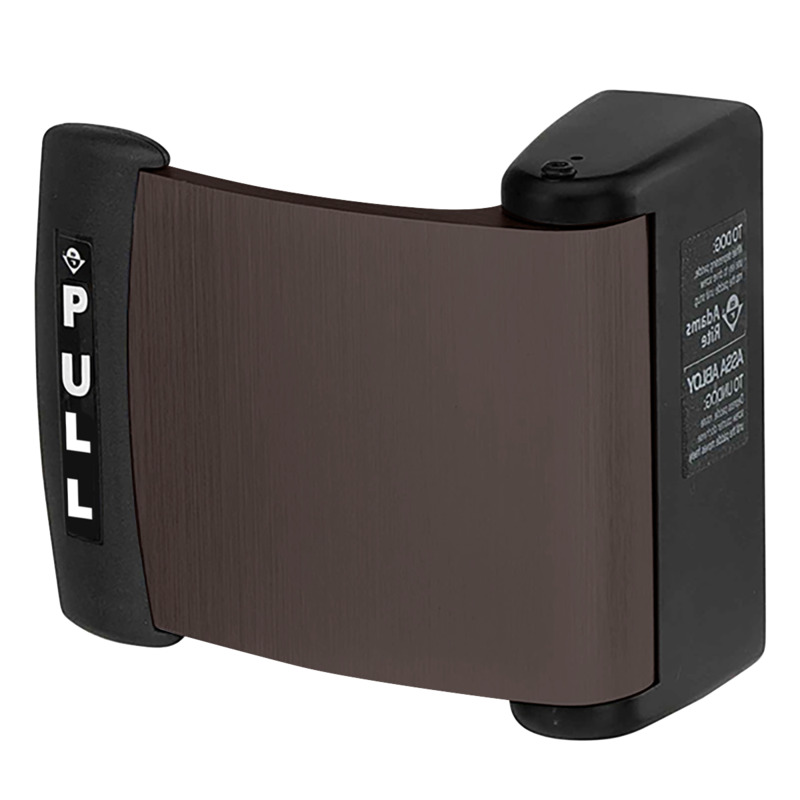

Curved Deadlatch Paddle, Pull to Left, For 1-3/4 In. Thick Door, RH (or Exterior of LHR), Dark Bronze Anodized

Part Number: ADR_45910100313

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Description
Literature

Adams Rite 4591-01-00-313 Aluminum Door Trim

Adams Rite 45910100313 Pull to Left Curved Deadlatch Paddle for 1-3/4" Dark Bronze Anodized Finish

Paddle: Extruded aluminum, 628 Clear Anodized finish (US28). 313 Dark Bronze Anodized and 335 Black Anodized are also available. US3 Bright Brass, US26 Bright Chrome, or US26D Satin Chrome plating is also available.
Escutcheon: Zinc allow with black finish. Houses steel operating mechanism. Secured to door stile with special binder posts that extend into the escutcheon to rigidly resist torque loads in any direction.
Cam Plug: Furnished for use with 4300, 4500 and 4900 Series Deadlatches. Cam plug not for use with MS+1890 Deadlock/Latch or 2190/2290 Interconnected Deadbolt/Deadlatch. Secured in latch body by cylinder setscrew, plug is also rigidly tied to escutcheon by hardened steel pins.
Deadlatch Paddle
Operates with a Simple Push or Pull
Ergonimcally-Friendly Alternative to a Knob or Lever
Available In Four Modes: Push To Left, Push To Right, Pull To Left, And Pull To Right
Warranted Free From Defects In Workmanship And Materials Under Normal Use And Service

Features

Escutcheon: Zinc allow with black finish. Houses steel operating mechanism. Secured to door stile with special binder posts that extend into the escutcheon to rigidly resist torque loads in any direction.
Cam Plug: Furnished for use with 4300, 4500 and 4900 Series Deadlatches. Cam plug not for use with MS+1890 Deadlock/Latch or 2190/2290 Interconnected Deadbolt/Deadlatch. Secured in latch body by cylinder setscrew, plug is also rigidly tied to escutcheon by hardened steel pins.
4591M: Paddle without latch drive mechanism but with switch that can be wired to make or break a low voltage circuit.
Paddle: Extruded aluminum, 628 Clear Anodized finish (US28). 313 Dark Bronze Anodized and 335 Black Anodized are also available. US3 Bright Brass, US26 Bright Chrome, or US26D Satin Chrome plating is also available.
Monitor Switch Options:
4591MA: Paddle with latch drive mechanism, complete active paddle with switch.
91-0914 Monitor Switch Kit: Adds monitor switch function to any 4591 Paddle ("push" version only).
Standard Package: Individually boxed with dogging hex key and mounting hardware. Units for 4300, 4500 or 4900 Series Deadlatches include cam plug. Shipping weight: 1-1/2 lbs.
Paddle Dogging ("Push" versions only): Turning hex key in escutcheon holds the paddle down, leaving door free-swinging. Dogging key provided.
Options: First dash number specifies operation (handing) and compatible latch. Second dash number can be used to specify non-standard units for doors thicker than 1-3/4" Also available: 4591M Paddle/switch to actuate magnetic lock, alarm, etc. (No latch retracting mechanism.) 4591MA Active Paddle with switch and latch retracting mechanism. 4781 Two-Point Deadlatch uses a modified, but matching version of the 4591 Paddle.

Attributes

Ship via: Can Ship UPS

Alternate Codes: 124768, 4591-01-00-313, 45910100313

Baa Qualified: Yes

Category: Glass Aluminum Hardware, Levers, Handles & Pulls, Locking Hardware, Lock Sets

Country of Origin: Usa

Door Application: Glass Aluminum Hardware

Door Thickness: 1-3/4"

Finish: Dark Bronze Anodized

Finish Code: DBZ

Finish Color: Dark Bronze

Finish Description: Dark Bronze Anodized Aluminum

For Use With: 4300, 4500 and 4900 Series

Function: Left Pull

Hand: RH

Handing: Left Hand

Latch Series: 4300/4500/4900

Lever Knob Design: Curved Paddle

Limited Warranty: 5 Years

Push Pull Paddle Style: 4500, 4900 Deadlatch, Curved Style, For 4300

Screws: Machine

Series: 4500 Series

Subtype: Trims

Type: Exit Devices
