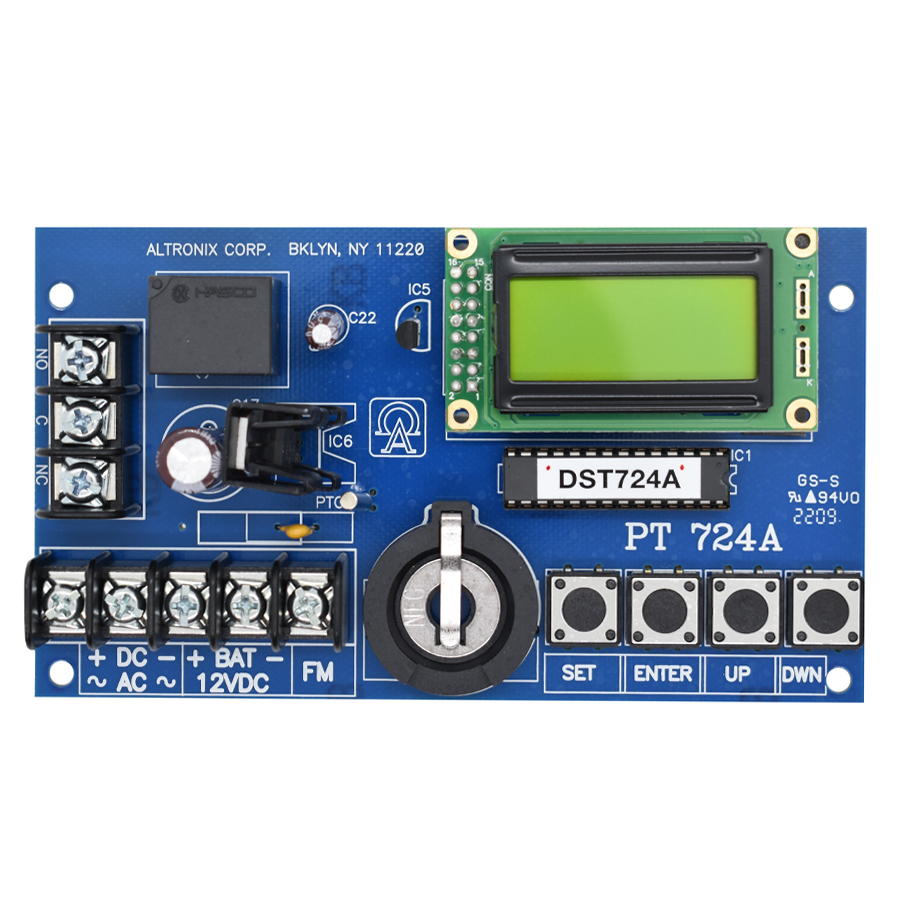

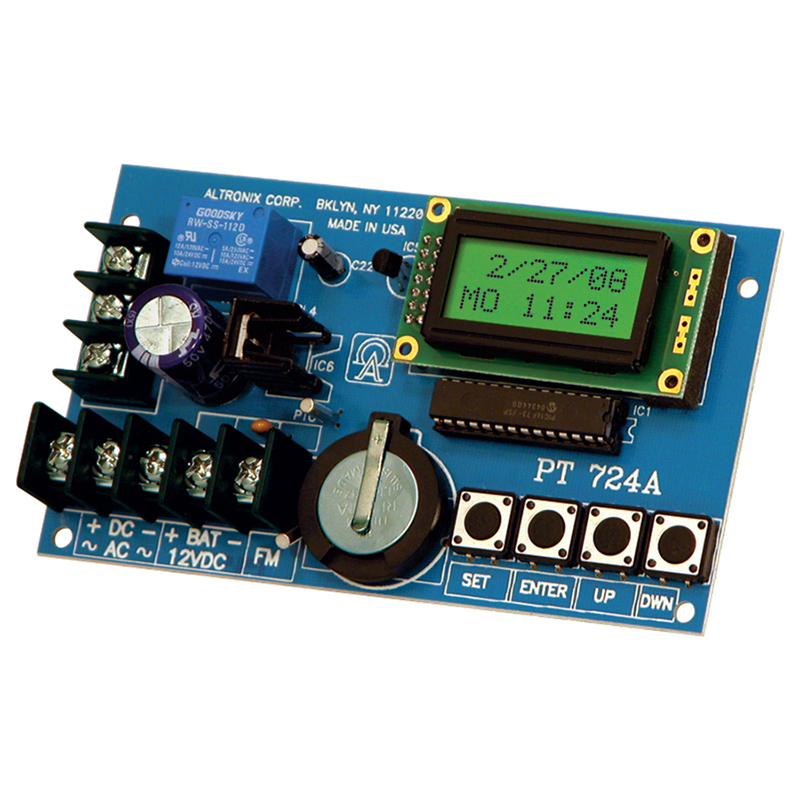

Altronix PT724A

Your Price: $109.81

Retail Price:$163.93

Your Savings:$54.12(33%)

Annual Event Timer Board, 365 Day 24 Hour, 12/24VAC/DC Input, Form C Relay Contacts rated 120VAC/28VDC at 10A

Part Number: ALT_PT724A

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Quantity

Description
Literature

Altronix PT724A Power Supply

12 to 24 volt AC or DC operation. 50 individual daily/weekly events. Block programming capacity accommodates 350 events per week. Standard or Daylight Savings Time settings.

Input: 12 to 24 volts AC or DC operation
12 to 24 volts AC or DC operation
Relay: Form "C" relay contacts are rated 10 amp @120VAC/28VDC. Standby current: 10mA (relay off) 50mA (relay on).
Form "C" relay contacts are rated 10 amp @120VAC/28VDC.
Standby current: 10mA (relay off) 50mA (relay on).
Features: EE Prom memory protects against loss of programming due to power failure. Accurate crystal controlled clock. Momentary and/or Latching Events. 50 individually programmed daily/weekly events. Block programming capacity can accommodate a total of 350 events per week. 10 programmable Holiday dates. "First man in" option. Standard or Daylight Savings Time settings. Automatic compensation for leap year.
EE Prom memory protects against loss of programming due to power failure.
Accurate crystal controlled clock.
Momentary and/or Latching Events.
50 individually programmed daily/weekly events.
Block programming capacity can accommodate a total of 350 events per week.
10 programmable Holiday dates.
"First man in" option.
Standard or Daylight Savings Time settings.
Automatic compensation for leap year.
Visual Indicators: Alphanumeric LCD display simplifies programming.
Alphanumeric LCD display simplifies programming.
Battery Backup: Built-in charger for 12VDC sealed lead acid or gel type batteries (Max charge current 100mA). Optional lithium battery backup maintains clock. Order Altronix part # LB2032.
Built-in charger for 12VDC sealed lead acid or gel type batteries (Max charge current 100mA).
Optional lithium battery backup maintains clock. Order Altronix part # LB2032.
Order Altronix part # LB2032.
Electrical: Operating temperature: - 20º C to 49º C ambient.
Operating temperature: - 20º C to 49º C ambient.
Mechanical: Board Dimensions (L x W x H approx.): 3" (76.2mm) x 5.25" (133.35mm) x 1" (25.4mm). Product weight (approx.): 0.48 lbs. (0.22 kg). Shipping weight (approx.): 0.5 lbs. (0.23 kg).
Board Dimensions (L x W x H approx.): 3" (76.2mm) x 5.25" (133.35mm) x 1" (25.4mm).
Product weight (approx.): 0.48 lbs. (0.22 kg).
Shipping weight (approx.): 0.5 lbs. (0.23 kg).

Features

Block programming capacity can accommodate a total of 350 events per week.
Standard or Daylight Savings Time settings.
Automatic compensation for leap year.
Built-in charger for 12VDC sealed lead acid or gel type batteries (Max charge current 100mA).
50 individually programmed daily/weekly events.
Visual Indicators: Alphanumeric LCD display simplifies programming.
Momentary and/or Latching Events.
Product weight (approx.): 0.48 lbs. (0.22 kg).
Standby current: 10mA (relay off) 50mA (relay on).
Mechanical: Board Dimensions (L x W x H approx.): 3" (76.2mm) x 5.25" (133.35mm) x 1" (25.4mm). Product weight (approx.): 0.48 lbs. (0.22 kg). Shipping weight (approx.): 0.5 lbs. (0.23 kg).
Relay:
Order Altronix part # LB2032.
Accurate crystal controlled clock.
Form "C" relay contacts are rated 10 amp @120VAC/28VDC.
10 programmable Holiday dates.
Optional lithium battery backup maintains clock. Order Altronix part # LB2032.
EE Prom memory protects against loss of programming due to power failure.
Board Dimensions (L x W x H approx.): 3" (76.2mm) x 5.25" (133.35mm) x 1" (25.4mm).
Shipping weight (approx.): 0.5 lbs. (0.23 kg).
"First man in" option.
Features:
Input: 12 to 24 volts AC or DC operation
Battery Backup: Built-in charger for 12VDC sealed lead acid or gel type batteries (Max charge current 100mA). Optional lithium battery backup maintains clock. Order Altronix part # LB2032.
Electrical: Operating temperature: - 20º C to 49º C ambient.

Attributes

Ship via: Can Ship UPS

Access Type: Access Control Module

Alternate Codes: 135462, PT724A, SMCDT7

Category: Access Control, Access Management, Hardwired

Commercial Residential: Commercial

Function: Event Timer

Installation: Commercial

Output Volts: 12/24 VDC/VAC

Purpose: General

Series: Altronix Timer Modules

Subtype: Power Supply

Type: ACCESS CONTROL

Voltage: 12V AC, 12V DC, 24V AC, 24V DC
