Altronix SAV182D

Your Price: $250.91

Retail Price:$380.63

Your Savings:$129.72(34%)

DC CCTV Power Supply, 115VAC 60Hz at 3A or 230VAC 50Hz at 1.5A Input, 18 PTC Protected Class 2 Outputs 12VDC at 11A Max Total Current, Grey Enclosure

Part Number: ALT_SAV182D

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Description
Literature

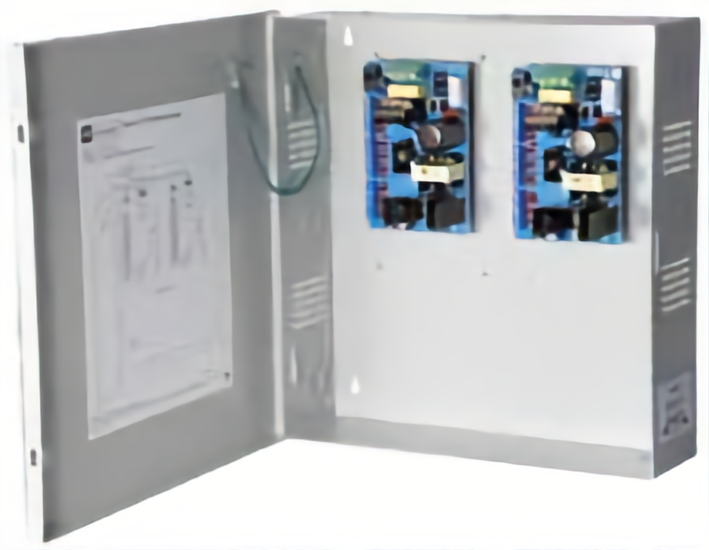

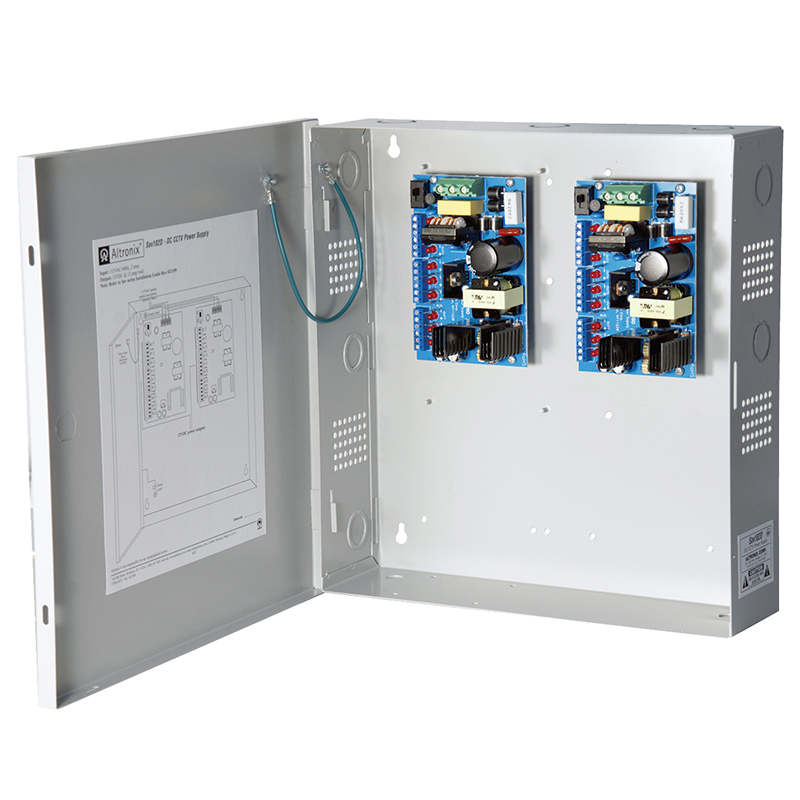

Altronix SAV182D Power Supply

Sav182D Power Supply provides 12VDC distributed via eighteen (18) Class 2 Rated PTC protected power limited outputs for powering surveillance cameras.

Input:
115VAC 60Hz, 3 amp /230VAC 50Hz, 1.5 amp.
Output:
12VDC @ 11 amp total output current (0.61 amp per device, 2.5 amp max.).
Eighteen (18) Class 2 Rated PTC protected power-limited outputs.
Filtered and electronically regulated outputs.
Short circuit and thermal overload protection.
Electrical:
Operating temperature: 0° C to 49° C ambient.
68.24 BTU/Hr.
System AC input VA requirement:
115VAC: 345VA.
230VAC: 330VA.
Features:
Eighteen (18) power LEDs.
Field installable 3-wire line cord with integral strain relief.
Unit maintains camera synchronization.
Ease of installation saves time and eliminates costly labor.
Mechanical:
NEMA1 enclosure.
Enclosure Dimensions (H x W x D approx.): 13.5" x 13" x 3.25" (342.9mm x 330.2mm x 82.55mm)
Product weight (approx.): 7.8 lbs. (3.54 kg).
Shipping weight (approx.): 8.7 lbs. (3.95 kg).

Features

Eighteen (18) Class 2 Rated PTC protected power-limited outputs.
Product weight (approx.): 7.8 lbs. (3.54 kg).
Short circuit and thermal overload protection.
115VAC: 345VA.
Field installable 3-wire line cord with integral strain relief.
Input:
12VDC @ 11 amp total output current (0.61 amp per device, 2.5 amp max.).
NEMA1 enclosure.
Ease of installation saves time and eliminates costly labor.
System AC input VA requirement:
Unit maintains camera synchronization.
Filtered and electronically regulated outputs.
115VAC 60Hz, 3 amp /230VAC 50Hz, 1.5 amp.
Enclosure Dimensions (H x W x D approx.): 13.5" x 13" x 3.25" (342.9mm x 330.2mm x 82.55mm)
Output:
68.24 BTU/Hr.
230VAC: 330VA.
Shipping weight (approx.): 8.7 lbs. (3.95 kg).
Electrical:
Mechanical:
Operating temperature: 0° C to 49° C ambient.
Features:
Eighteen (18) power LEDs.

Attributes

Ship via: Can Ship UPS

Access Type: Power Supply

Alternate Codes: SAV182D

Category: Access Control, Alarm Power Supplies, Alarms & Intercom, Burglar Alarms, CCTV Power Supplies, CCTV Products, Power Supplies, Wire & Power Supplies

Function: 18 Output CCTV Power Supply

Output Amps: 11 AMPS

Output Volts: 12VDC

Purpose: CCTV

Series: Altronix Power Supplies

Subtype: Power Supply

Type: Wire-In Transformer

Voltage: 12V DC
