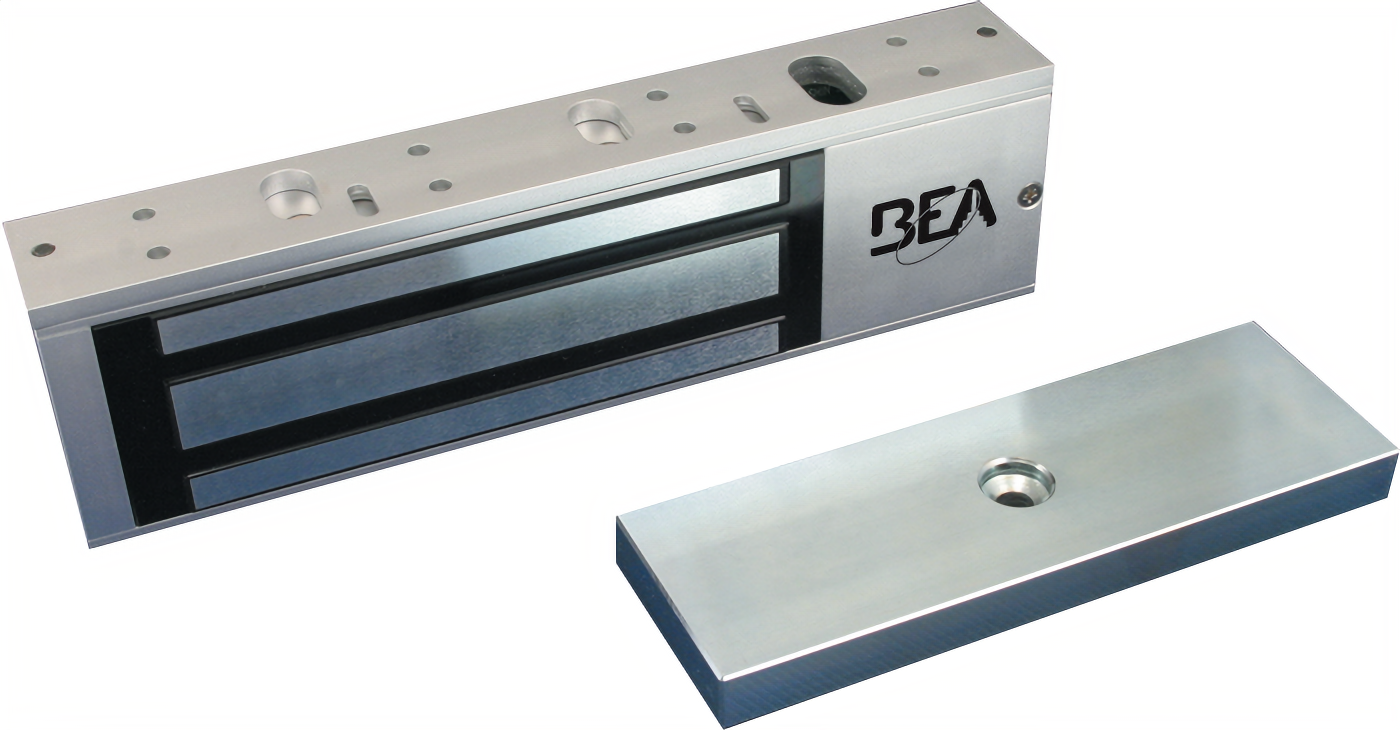

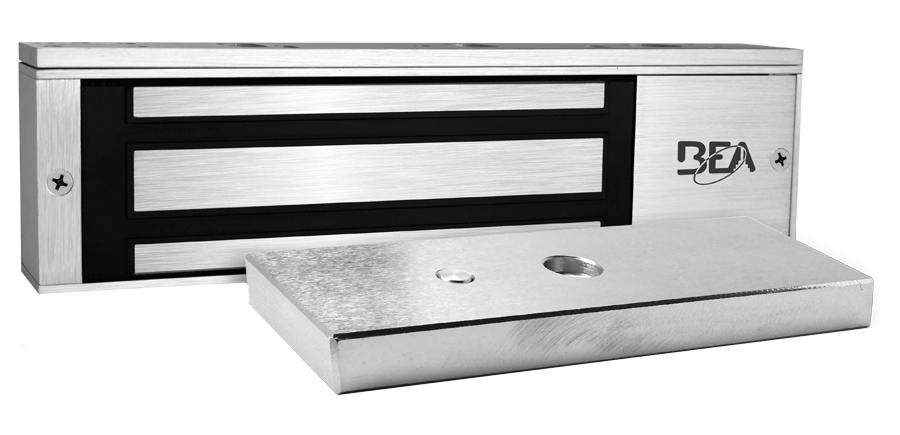

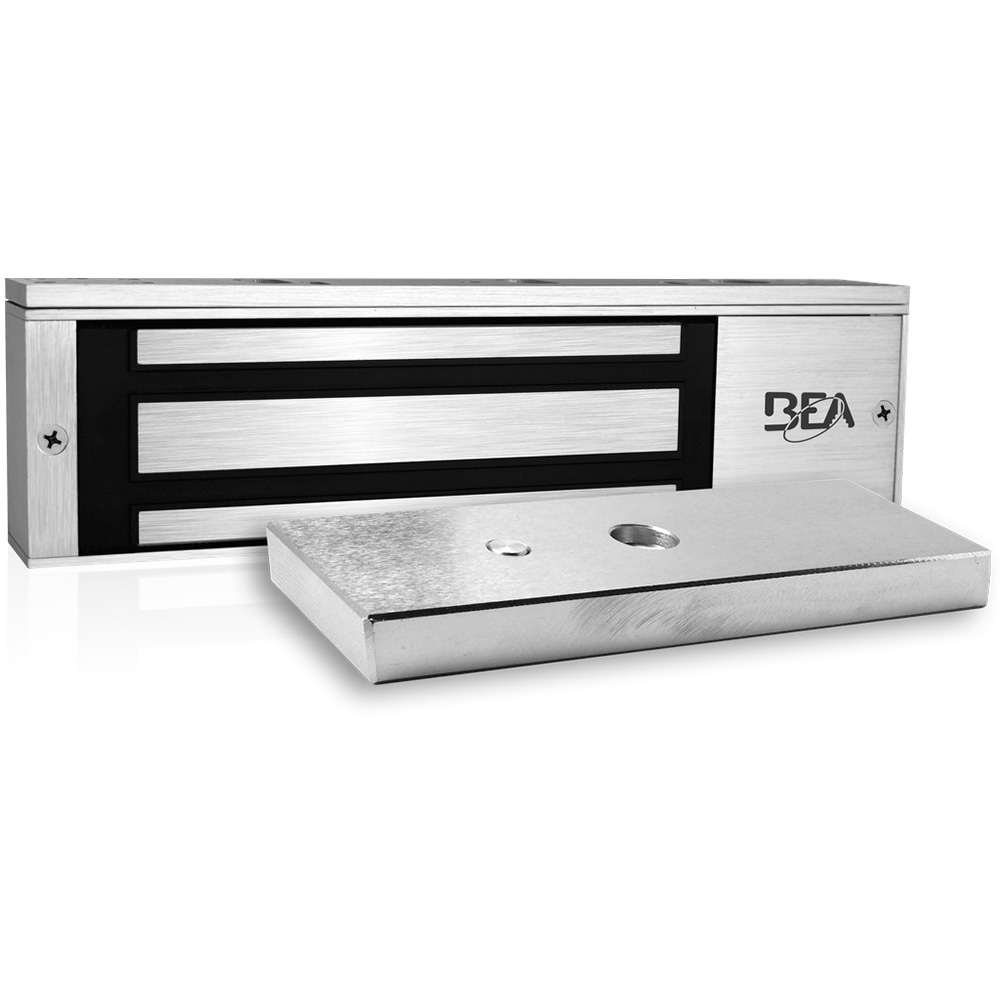

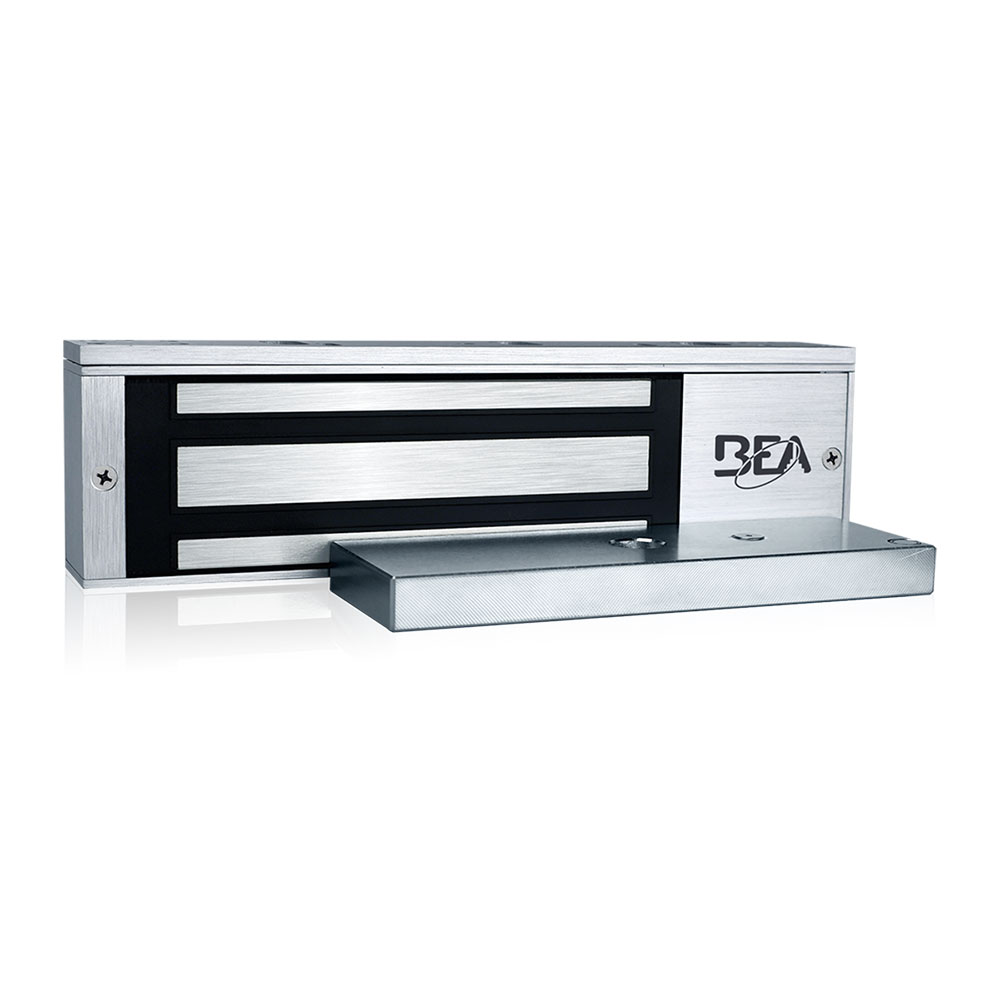

BEA 10MAGLOCK1UL

Your Price: $156.00

Retail Price:$367.25

Your Savings:$211.25(58%)

Single Electromagnetic Surface Mount Lock, UL / ULC Listed, LED Status, Lock Status Sensor (NO or NC Outputs), 0 to 90 S Hold Open Timer (Relock), (1) Bond Status Relay, 12 / 24 VDC (UL Listed Power Supply Required), 1200 Lb.

Part Number: BEA_10MAGLOCK1UL

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Description
Literature

BEA 10MAGLOCK1UL 1200lb Sgl Maglock 12/24 Ul Led Bs

UL Listed

UL Listed
Adjustable 0-90 sec relock time delay
Available in 600 or 1,200 lb holding forces
Available in single or double surface mount models
Lock status sensor with visible LED
Lock status sensor offers either normally open (NO) or normally closed (NC) output configurations
Input voltage of 12/24 VDC
Variety of mounting plate and bracket hardware available
Available in access control packages with sensor logic module, actuator, power supply and maglock

Product Assemble-to-Order. Lead Time 2-5 days

Attributes

Ship via: Can Ship UPS

Access Type: Maglock

Alternate Codes: 10MAGLOCK1, 10MAGLOCK1UL, BEA10MAGLOCK1, BEA10MAGLOCK1UL*

Amp Draw: 505 mA @ 12 VDC or 260 mA @ 24 VDC

Baa Qualified: No

Finish: Aluminum

Fire Rated: No

Handing: Non-Handed

Holding Force: 1200 lbs

Maglock Type: Single Door

Mounting: Indoor, Surface Mount

Operating Voltage: 12VDC/24VDC

Options: Bond Sensor, LED Status

Restrictions: No

Series: BEA Magnetic Locks

Size: 10.74" x 2.91" x 1.58"

Subtype: Maglocks

Type: ACCESS CONTROL

Voltage: 12V DC, 24V DC
