Images may not represent actual product and finish

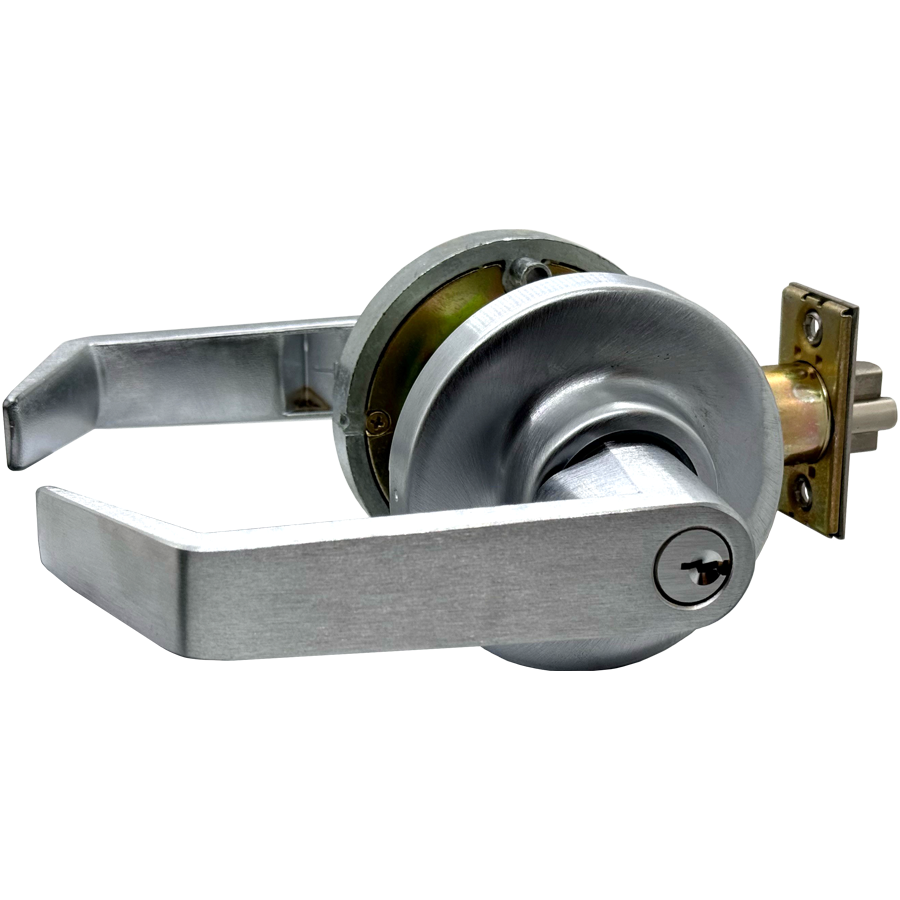

Marks Hardware 195F/26D Storeroom Lever G1

Your Price: $147.05

Retail Price:$309.04

Your Savings:$161.99(52%)

Grade 1 Storeroom Cylindrical Lock, Key in Lever Cylinder, American Lever, 3-7/16" Diameter Rose, Satin Chrome Finish, Non-Handed

Part Number: MAS_195F26D

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Description

Marks Hardware 195F/26D Storeroom Lever G1

Latch by lever inside, key outside. Outside lever always locked.

Backset: 2-3/4"; 2-3/8", 3-3/4" & 5" Optional
Latch #1834, Front: 1-1/8" x 2-1/4"; Throw: 9/16"; Stainless steel nose
Levers: Solid cast Zamac w/ 1/2" return
Rose: Thru-bolted, 3-7/16" dia., spring loaded 2-#10 thru-bolts
Strike: #1135, 4-7/8" ASA curved lip
Door thickness: 1-5/8" to 1-7/8" (For 1-3/8" door use K1704 spacer.)
Cylinder: MARKS C keyway, 6 pin w/ 2 keys or IC Core housing
Electrified functions - 100% duty cycle, 24V/AC supplied with bridge rectifier; 24V/DC, .21 Amps
12V/DC Optional, Contact factory for additional options
Request to Exit Switch: Single pole, double throw, 3 amp,125 AC, wired either normally open or normally closed (REX Switch is not standard on electrified leverset)
Features "The Clutch"
UL Listed, 3 hour fire rated

Attributes

Ship via: Can Ship UPS

Accessible: Yes

Ada Compliance: Yes

Alternate Codes: 113019, 195F/26D, 195F26D, 932178

Ansi: A156.2

Ansi Function: F86

Baa Qualified: Yes

Backset: 2-3/4"

Bolt Projection: 9/16"

Bore Hole Diameter: 2-1/8"

Burglar Rated: No

Category: Commercial Locks, Cylindrical Levers, Lock Sets

Certifications: A156.2, ANSI, UL Listed 3 Hour

Commercial Residential: Commercial

Country of Origin: Usa

Country of origin: USA

Cylinder Included: Yes

Cylinder Type: 6-Pin Cylinder

Door Application: Lock Sets

Door Bore Size: 2-1/8"

Door Thickness: 1-5/8"-1-7/8"

Door Thickness Max: 1-7/8"

Door Thickness Min: 1-5/8"

Finish: 626/US26D

Finish Code: 626

Finish Color: Satin Chrome

Finish Description: Satin Chrome

Finish Family: Matte Silver

Fire Rated: Yes

Fire Rating: 120 min

Function: Storeroom

Grade: Grade 1

Handing: Non-Handed

Installation: Commercial

Keying: Keyed Different

Keys: Cut

Keyway: Marks C

Knob/ Lever Design: 195

Knob/ Lever Style: Lever

Latch Bolt Face Type: Square Corner

Latch Bolt Faceplate Size: 2-1/4" x 1-1/8"

Latch Bolt Throw: 1/2"

Latch Bolt Type: Deadlatch

Latch Bore Diameter: 1"

Latch Throw: 9/16"

Latchbolt Type: Deadlatch

Lever Design: American

Leverknob Design: 195 - American Lever

Leverknob Design Family: Straight Return Lever

Limited Warranty: Lifetime

Lock Category: Cylindrical Lock

Lock Face Size: 1-1/8" x 2-1/4"

Manufacturer: Marks USA

Of Keys: 2

Origin: USA

Pack Qty: 1

Pins: 6

Projection: 2-3/4"

Restricted Keyway: No

Restrictions: None

Rose/ Escutcheon: 3-7/16" Diameter, Spring Loaded

Rose/ Escutcheon Size: 2-9/16"

Rose/ Escutcheon Style: Rose

Roseescutcheon Design: 3-7/16" Rose Diameter

Screws: Combination

Series: 95 Line

Std Keyway: Schlage C

Std Latch Backset Dim: 2-3/4"

Std Latch Number: 1834A

Std Latch Type: Dead Latch (Guarded)

Std Strike Height: 4-7/8"

Std Strike Number: 1135

Std Strike Type: ASA Curved Lip Strike

Std Strike Width: 1-1/4"

Strike Size: 4-7/8" x 1-1/4"

Subtype: Cylindrical Lock

Supplier: Marks

Type: LOCK SETS

Ul Listing: UL 10C

Unit of Measure: Each
