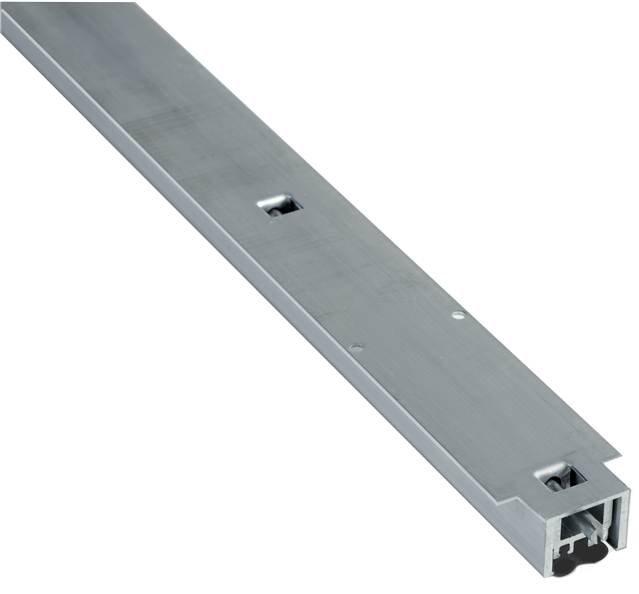

National Guard Products 320N48 48" Neoprene Automatic Door Bottom for Hollow Metal Door Clear Anodized Aluminum Finish
Attributes
Ship via: Can Ship UPS
Restriction message: Due to the fragile nature of this item, it can be easily damaged in shipping. The following charges apply to insure your items arrive in good condition. 1 to 12 Pieces: $19.50 13 to 24 Pieces: $39.50 25 to 36 Pieces: $58.50
Application: Fits in 1-5/8" x 3/4" channel. A "furring strip" may be used to lower automatic door bottom when a deeper channel is used
Color: NGP-TPV is black
Commercial Residential: Commercial
Drop: 1/2" max drop
Fasteners: #4 x 5/8" SMS furnished
Finish: Clear Anodized Aluminum
Finish Description: Milled Aluminum
Finish Family: Matte Silver
Fire Rated: Fire ratings apply to metal doors only
Fire Rating: 3 Hours
Installation: Commercial
Length: Available 24" to 48" in length
Material: Mill aluminum
Moisture Resistant: YES
Pack Qty: 1
Quickship: Yes
Resistance: Good resistance to ozone, sunlight and aging
Restrictions: Fragile
Series: Gasketing Series
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Subtype: Weatherstripping
Temperature Range: Temperature range -81°F to 275°F
Type: Weatherization
Ul Listing: UL10C
Unit of Measure: Each
