Attributes
Ship via: Can Ship UPS
Application: CM
Clazz: NG
Color: Clear Anodized Aluminum
Country of Origin: Usa

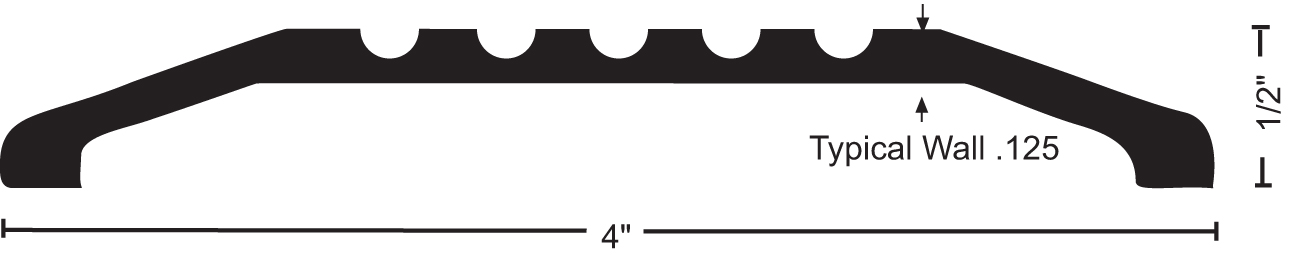

Dimensions: 4" wide x 1/2" tall
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included
Finish: Mill finish
Finish Description: Milled Aluminum
Fire Rated: 3 Hours
Flange Material: Mill
Hardware: #10 x 1-1/2" FH zinc plated wood screws

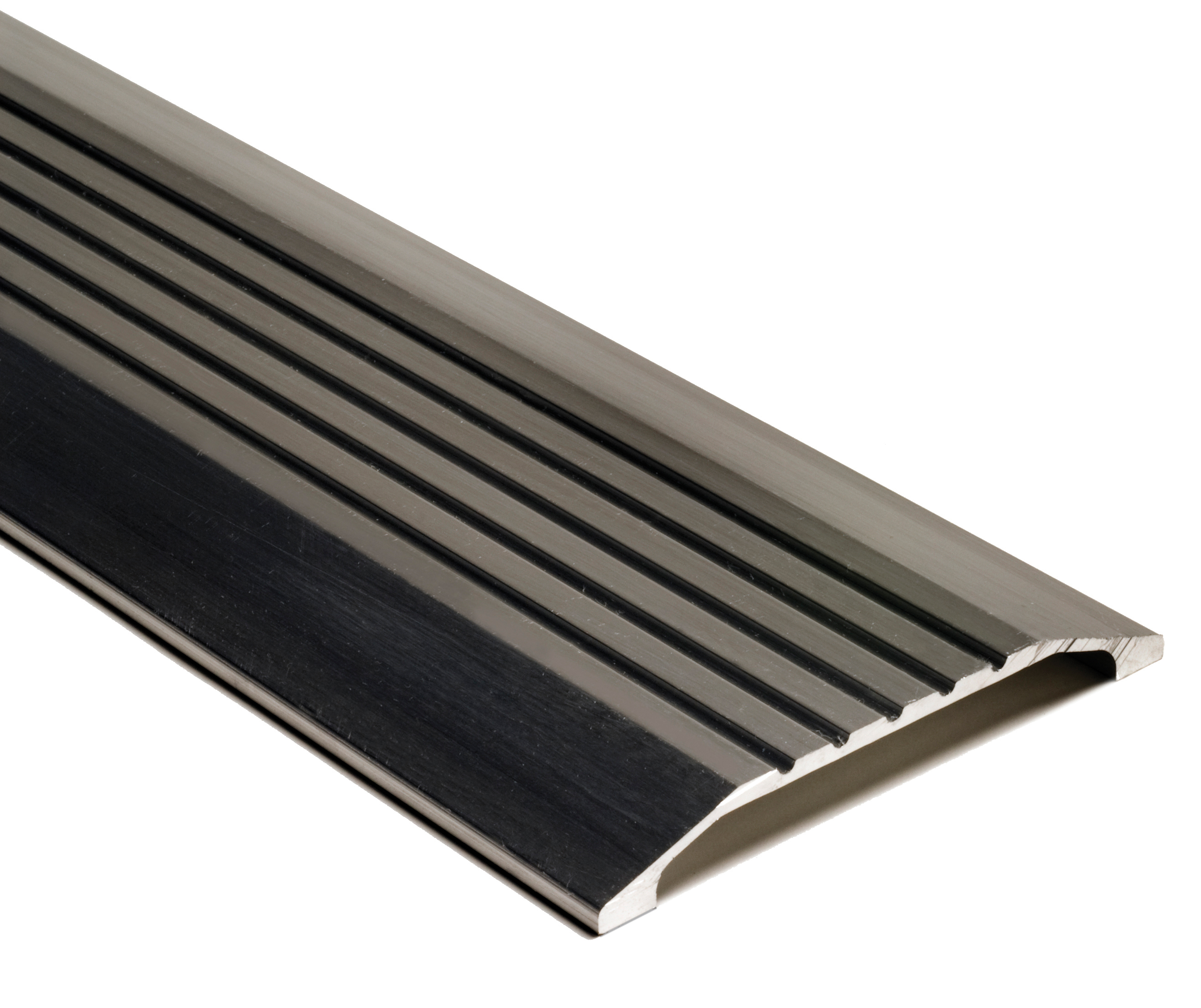

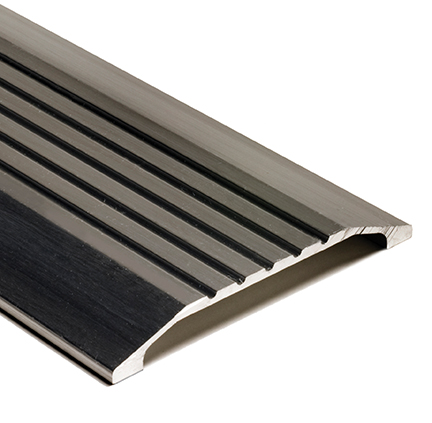

Item Class Description: 4" x 1/2" x 36" Saddle Threshold
Item Type Keyword: Threshold
Length: 36.0"
Limited Warranty: Limited 5 Year Warranty
Material: Aluminum alloy 6063, T5 temper
Number Of Inners: 1
Product Dimension: 36" x 4" x 1/2"
Series: Threshold Series
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standards: UL Classified UL10C; ANSI/BHMA Certified A156.21
Subtype: Thresholds
Type: Saddle Threshold
Wall Thickness: Typical wall thickness .125"
Weight: Weight: .61 lbs./ft.
