Attributes
Ship via: Can Ship UPS
Application: CM
BHMA: BHMA certified to ANSI/BHMA A156.21 1,000 lb. load test
Clazz: NG
Color: Clear Anodized Aluminum
Country of Origin: Usa
Dimensions: 5" wide x 1/4" tall
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included
Finish: Mill finish
Finish Description: Milled Aluminum
Fire Rated: 3 Hours
Flange Material: Mill
Hardware: #10 x 1-1/2" FH Zinc Plated Wood Screws

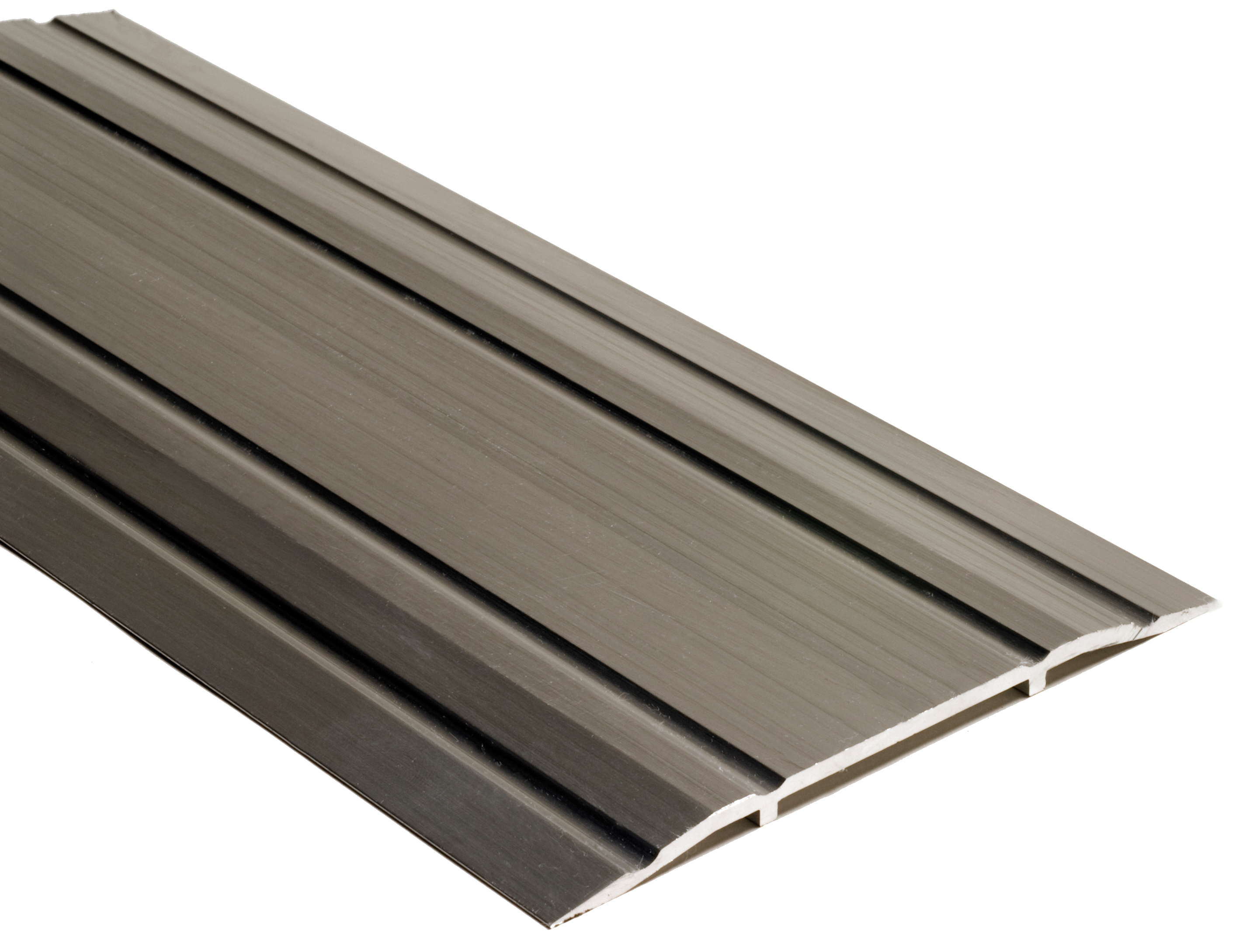

Item Class Description: 5" x 1/4" x 36" Saddle Threshold
Item Type Keyword: Threshold
Length: 36.0"
Limited Warranty: Limited 5 Year Warranty
Material: Aluminum alloy 6063, T5 temper
Number Of Inners: 1
Product Dimension: 36" x 5" x 1/4"
Series: Threshold Series
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Standards: UL Classified UL10C; ANSI/BHMA Certified A156.21
Subtype: Thresholds
Type: Saddle Threshold
Wall Thickness: Typical wall thickness .125"
Weight: Weight: .68 lbs./ft.
