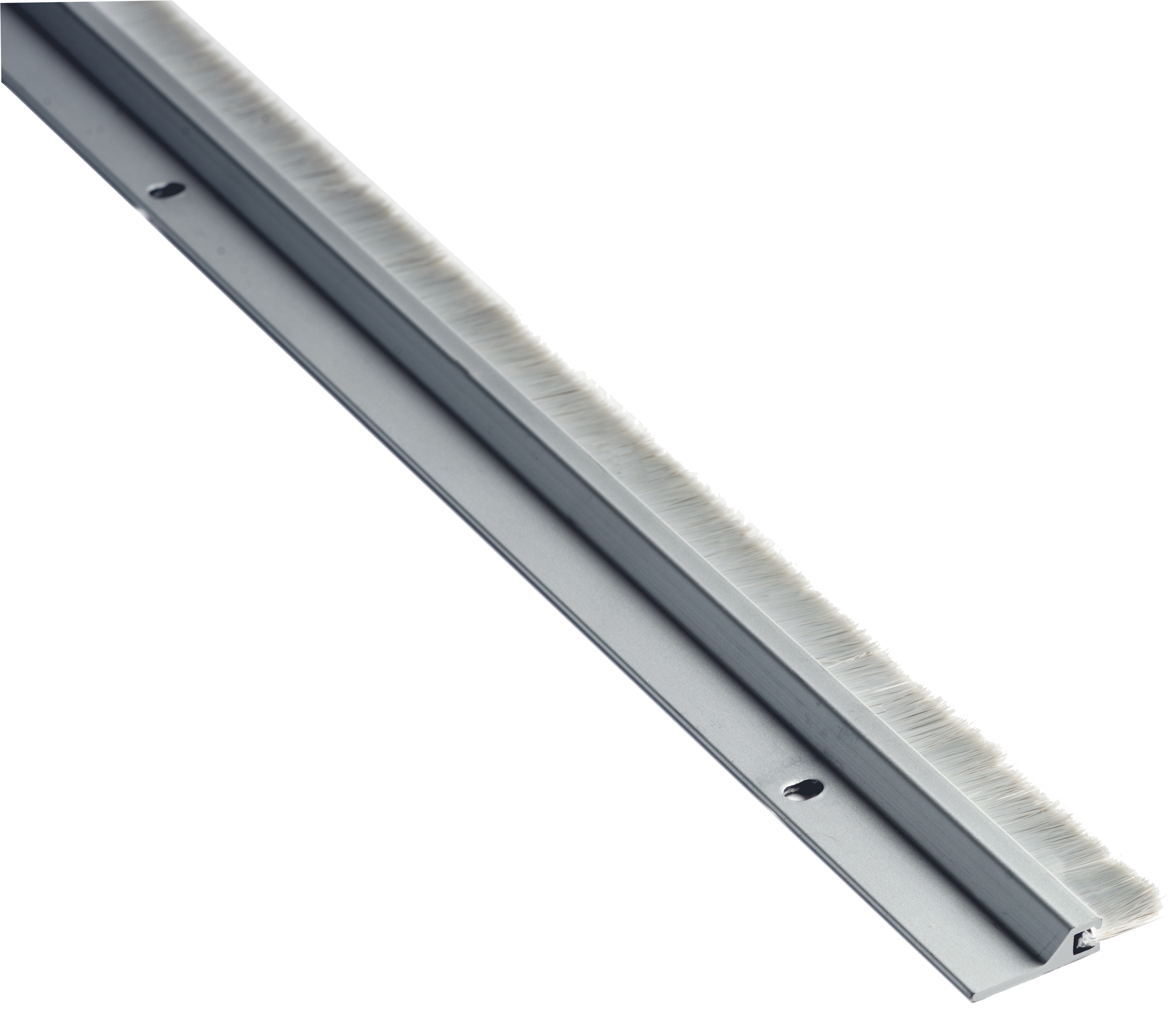

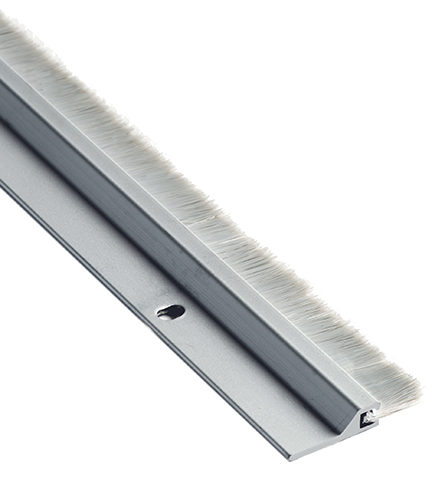

National Guard Products 600A36 36" Brush Seal or Sweep Clear Anodized Aluminum Finish
Attributes
Ship via: Can Ship UPS
Application: CM
BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
Clazz: NG
Color: Nylon brush is gray
Country of Origin: Usa
Fasteners: #6 x 3/4" stainless steel sheet metal screws furnished
Finish: Anodized aluminum
Finish Description: Satin Aluminum Clear Anodized
Fire Rated: 3 Hours
Item Class Description: 36" Brush Seal or Sweep
Item Type Keyword: Sweep
Length: 36.0"
Limited Warranty: Limited 5 Year Warranty
Material: Synthetic polymer: Polyamide
Moisture Resistant: YES
Number Of Inners: 1

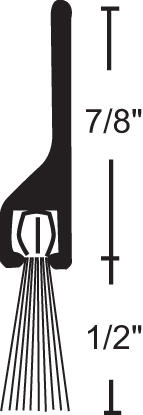

Product Dimension: 36" x 1-3/8"
Resistance: Excellent abrasion resistance, flexibility and memory
Ro HS: REACH and RoHS compliant
Series: Gasketing Series
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Subtype: Thresholds
Temperature Range: Temperature range -70°F to 425°F
Type: Weatherization
