Images may not represent actual product and finish

National Guard Products C627A48

Your Price: $24.96

Retail Price:$39.00

Your Savings:$14.04(36%)

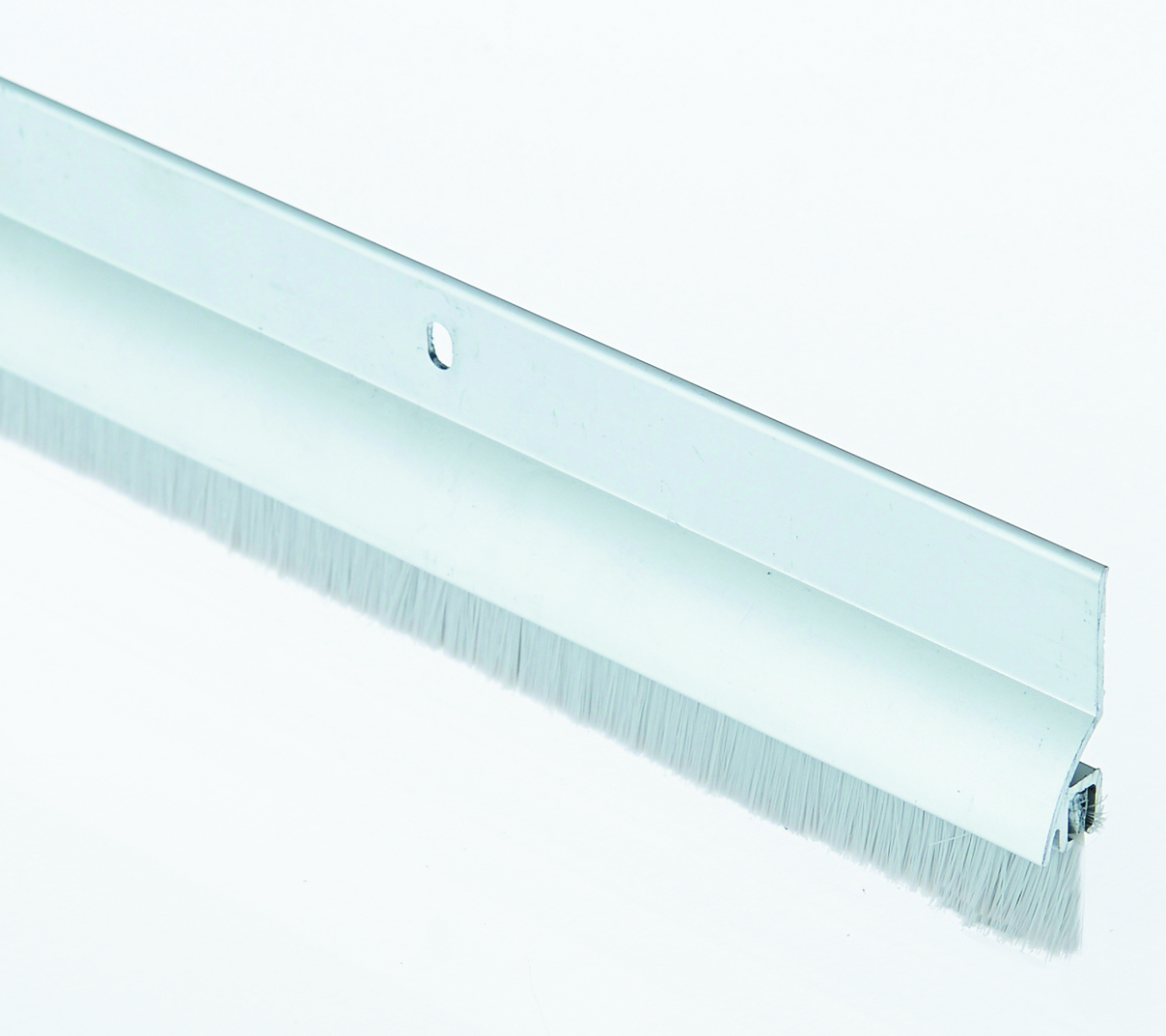

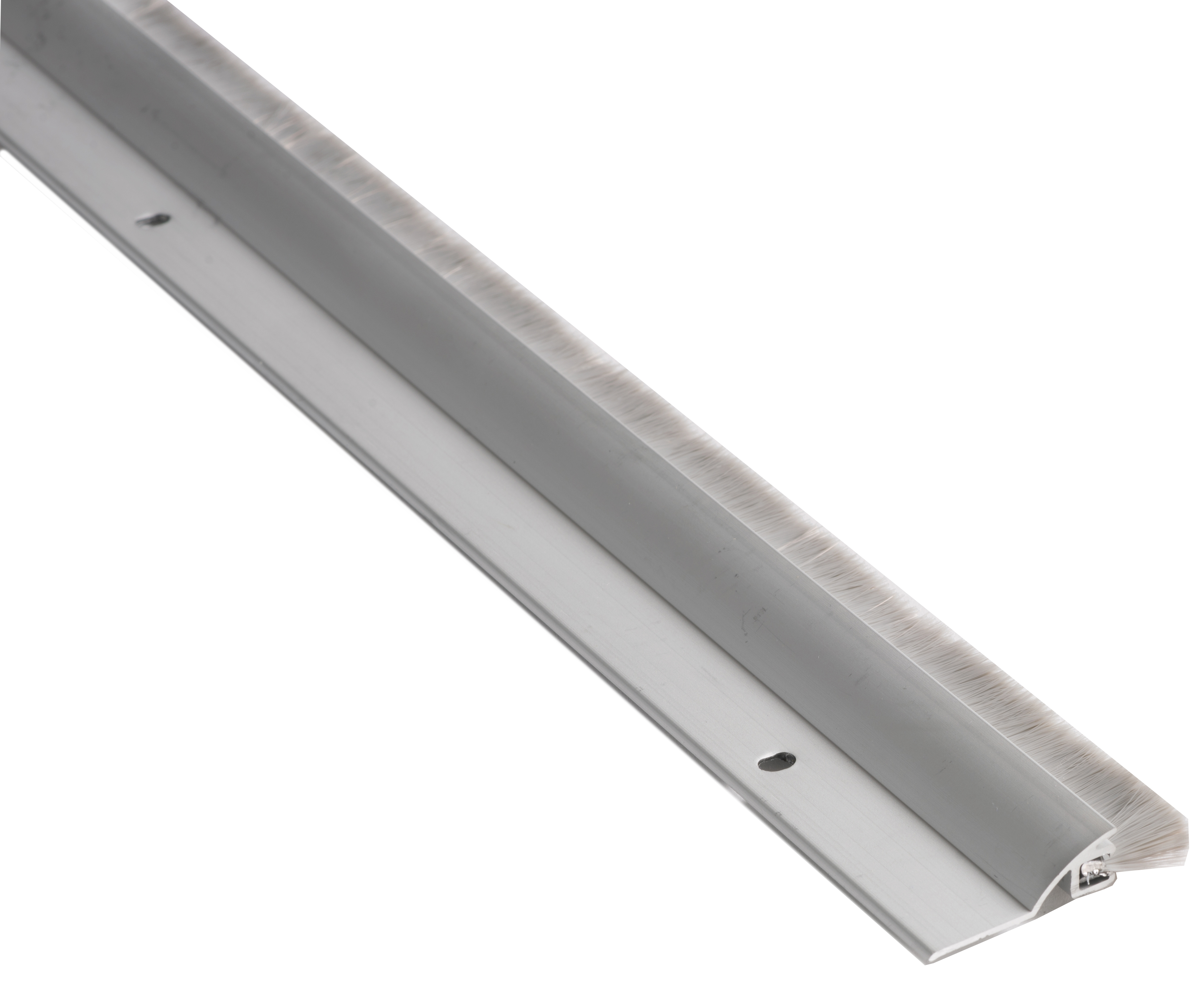

National Guard Products C627A48 48" Gray Brush Seal Clear Anodized Aluminum Finish

Part Number: NGP_C627A48

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Description
Literature
Brand Information

NGP C627A48 National Guard Products Weatherstrip

National Guard Products C627A48 48" Gray Brush Seal Clear Anodized Aluminum Finish

#6 x 3/4" stainless steel sheet metal screws furnished
Temperature range -70°F to 425°F
REACH and RoHS compliant
Not effective against water penetration
Anodized aluminum
Nylon brush is gray
Retains insecticides well
Screw holes slotted for adjustment
Moisture resistant
BHMA certified to ANSI/BHMA A156.22 performance tests for heat and cold
Aluminum alloy 6063, T5 temper
Synthetic polymer: Polyamide
Excellent abrasion resistance, flexibility and memory

Attributes

Ship via: Can Ship UPS

Restriction message: Due to the fragile nature of this item, it can be easily damaged in shipping. The following charges apply to insure your items arrive in good condition. 1 to 12 Pieces: $19.50 13 to 24 Pieces: $39.50 25 to 36 Pieces: $58.50

Application: CM

BHMA: BHMA certified to ANSI/BHMA A156.22 performance tests for heat and cold

Clazz: NG

Color: Nylon brush is gray

Country of Origin: Usa

Fasteners: #6 x 3/4" stainless steel sheet metal screws furnished

Finish: Anodized aluminum

Finish Description: Satin Aluminum Clear Anodized

Fire Rated: 3 Hours

Item Class Description: 48" Gray Brush Seal

Item Type Keyword: Seal

Length: 48.0"

Limited Warranty: Limited 5 Year Warranty

Material: Synthetic polymer: Polyamide

Moisture Resistant: YES

Number Of Inners: 1

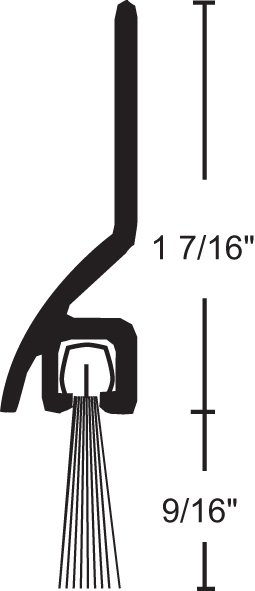

Product Dimension: 48" x 2-3/8"

Resistance: Excellent abrasion resistance, flexibility and memory

Restrictions: Fragile

Ro HS: REACH and RoHS compliant

Series: Gasketing Series

Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.

Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.

Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.

Subtype: Thresholds

Temperature Range: Temperature range -70°F to 425°F

Type: Weatherization
