Ship via: Can Ship UPS
Alternate Codes: M62BD
Baa Qualified: Yes
Category: Access Control, Maglocks, Single Maglocks
Country of Origin: Usa
Current 12v DC (m A): 250
Current 24v DC (m A): 150
Door Application: Maglocks
Finish: Satin Stainless Steel
Finish Description: Satin Stainless Steel
Fire Rated: Yes
Fire Rating (hrs): 3
Grade: Grade 2
Holding Force (lbs): 1200
Limited Warranty: Lifetime
Maglock Options: BondSTAT Monitor, Door Position Switch
Maglock Type: 1200lb

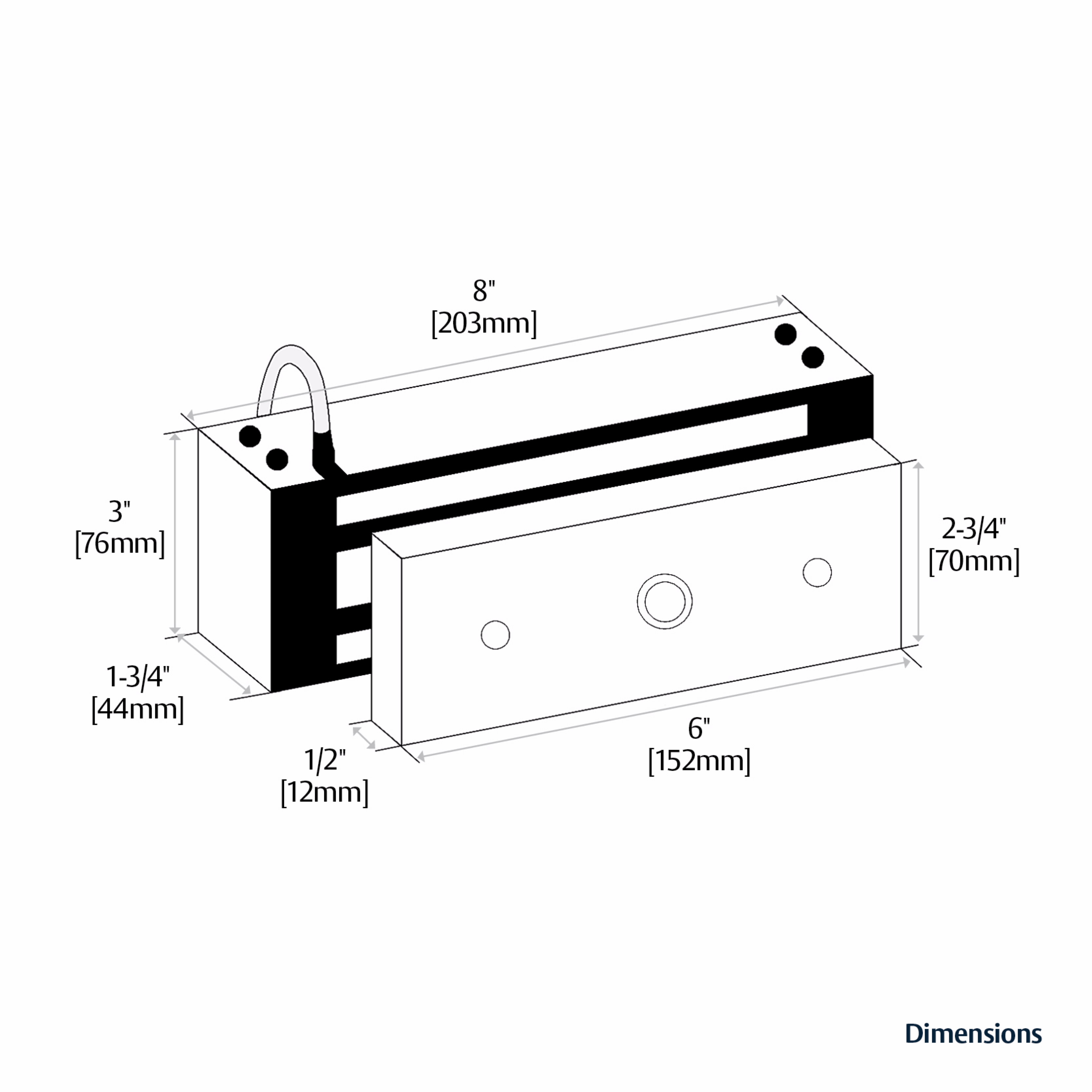

Magnet Depth (in): 2.75
Magnet Height (in): 3
Magnet Length (in): 8
Maximum Operating Temperature (° F): 140
Minimum Operating Temperature (° F): -40
Monitoring Options: BondSTAT Monitor
Mounting: Direct Mount
Operating Voltage: 12VDC/24VDC
Options: Standard Strike
Outdoor Rated: Yes
Preload Capable: Yes
Restrictions: None
Series: M62 Series
Subtype: Magnetic Locks
Switch Type: MBS/DPS
Type: Electronics
Upc: 784607036463
Voltage: 12/24
Weather Rating: Weather Resistant
